Modulation Mode: Wide Band FM, PLL Synth
Frequency Range: UHF 566 – 590 MHz
Channels: 96 Selectable Frequencies
Frequency Response: 50Hz~15KHz ±3dB
Operate Mode: IR Sync
Max. Deviation Range: ±48 KHz
Total Harmonic Distortion: < 0.5% @10KHz
Transmitter Output: 100mW

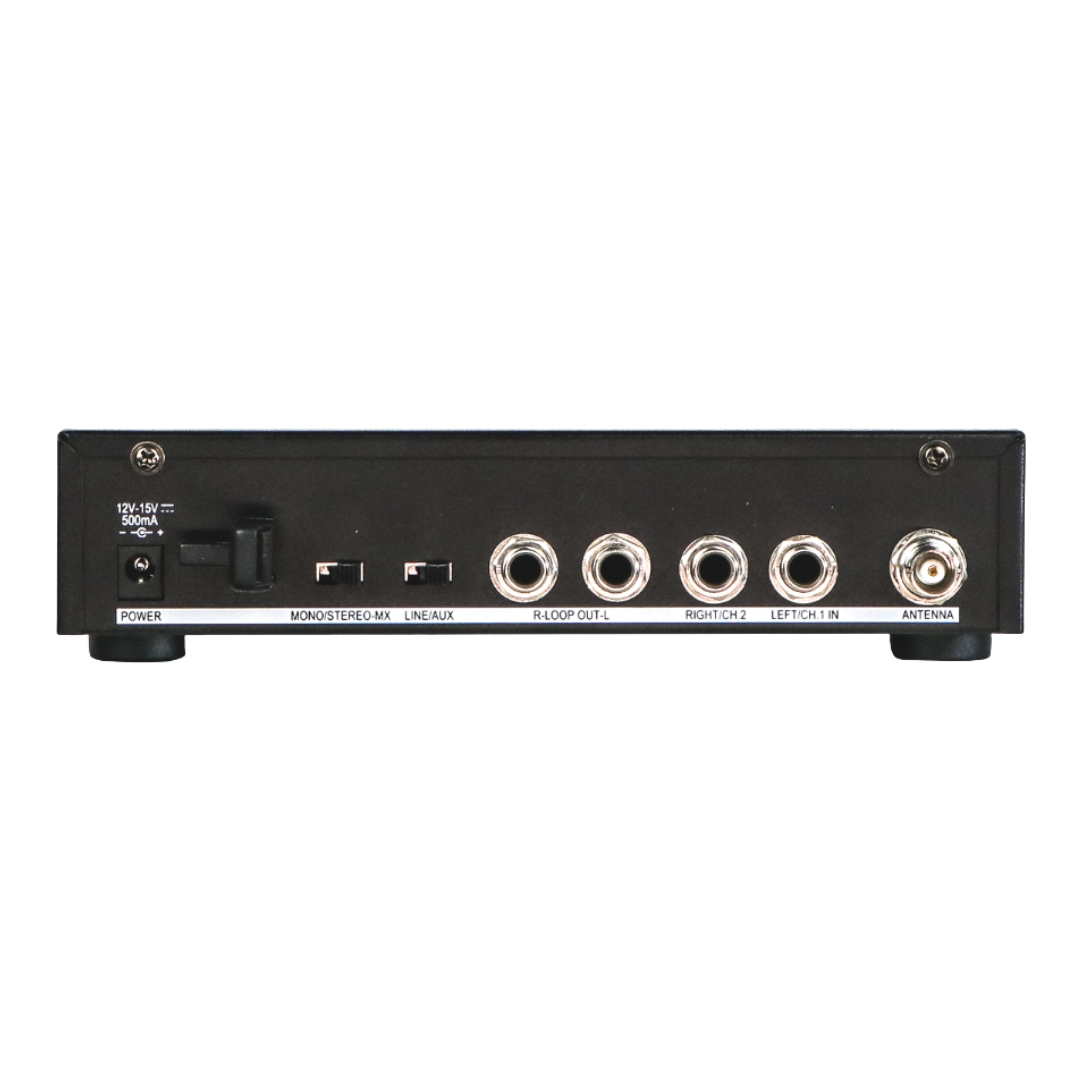

Transmitter Input: 1/4″ Input
Power Supply: DC 12v, 150mA
Transmitter Antenna: BNC Antenna
Working Range: Up to 48 meters

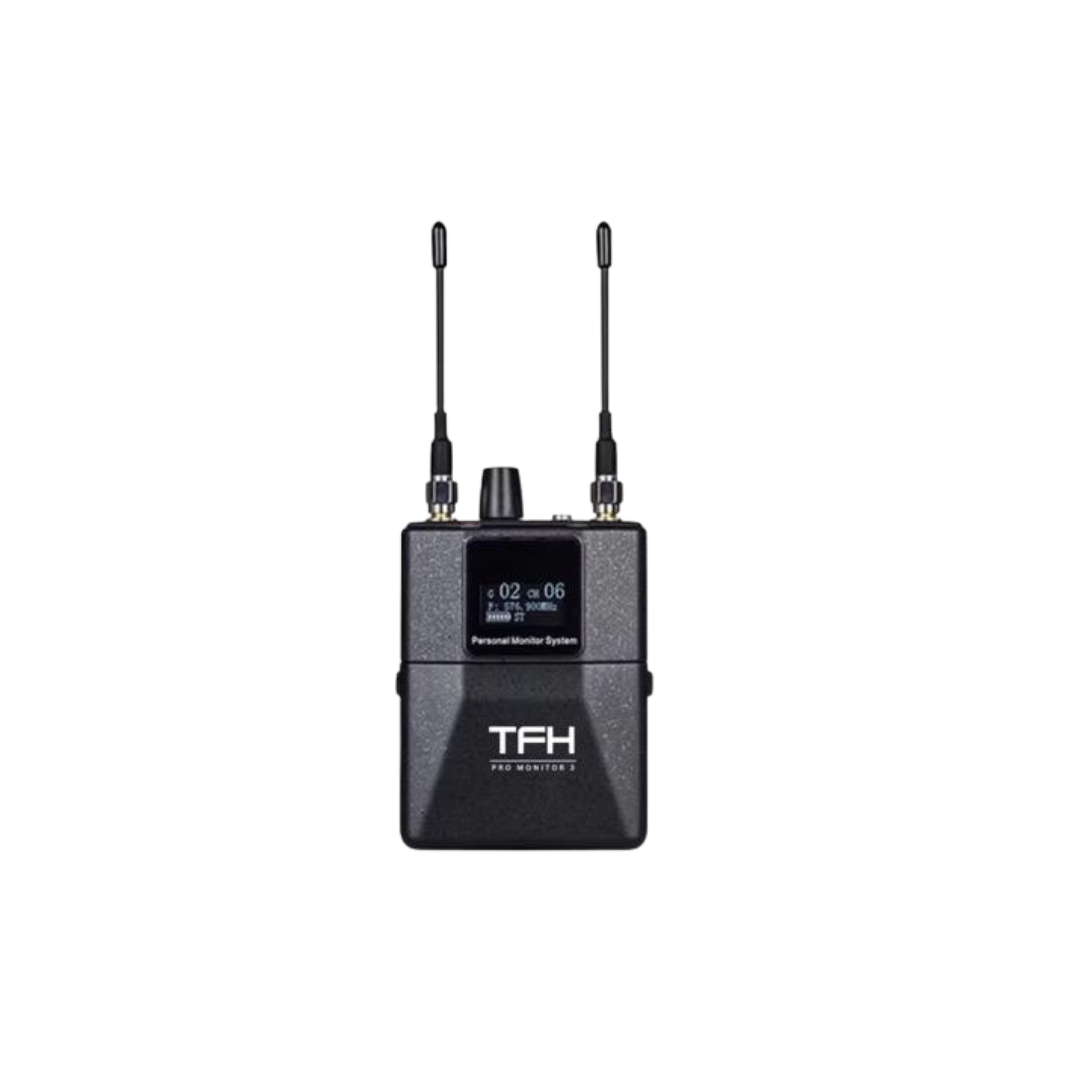

Receiver Battery: 2x AA Batteries
Receiver Housing: Aluminium Alloy
